Mobile App Configuration Settings

Before using the RICOH Streamline NX for User mobile app, configure the authentication settings and specify the connecting SLNX server on the [Settings] screen.

The [Settings] screen is displayed at initial startup after download from the App store is complete.

If the [Settings] screen is not displayed, or to change the default settings during use, press [ A grey and white logo

Description automatically generated ].

Start the mobile app.

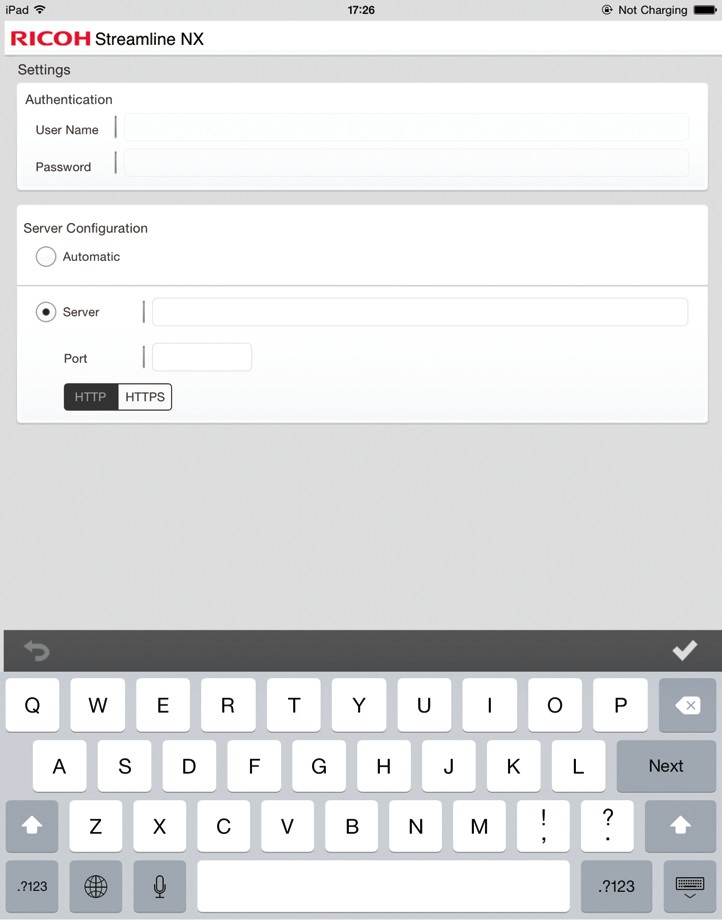

Use the [Settings] screen to configure the default settings.

Item	Description
Authentication	User Name: Enter the user name to use when logging in to the SLNX server. Use the format "domain\user". Password: Enter the password to use when logging in to the SLNX server.
Server Configuration	Select the method for connecting to the SLNX server. Select [Automatic] to search for the SLNX server and connect to it automatically. To specify the server manually, enter the SLNX server name or IP address in [Server] and its port number in [Port], and then select [HTTP] or [HTTPS]. You can specify multiple servers by separating them using a comma. You can select [Automatic] only when the mobile device and the Streamline NX server exist on the same network. If you specify [Automatic] when performing server search, you can access only the server that is connected under the same router as the one the mobile device is connected to.

Item

Description

Authentication

User Name: Enter the user name to use when logging in to the SLNX server. Use the format "domain\user".
Password: Enter the password to use when logging in to the SLNX server.

Server Configuration

Select the method for connecting to the SLNX server.
Select [Automatic] to search for the SLNX server and connect to it automatically.
To specify the server manually, enter the SLNX server name or IP address in [Server] and its port number in [Port], and then select [HTTP] or [HTTPS]. You can specify multiple servers by separating them using a comma.

You can select [Automatic] only when the mobile device and the Streamline NX server exist on the same network.
If you specify [Automatic] when performing server search, you can access only the server that is connected under the same router as the one the mobile device is connected to.

Press [Apply].

The SLNX mobile app tests the connection to the SLNX server. If the connection attempt fails, an error message is displayed. Contact the administrator.

To use the SLNX mobile app, install the SSL certificate file on the mobile device for secure communication. For details, refer to Install the Certificate on a Mobile Device.
For details about entering text and operating the mobile device, see the user's guide supplied with the mobile device.
The language specified on the mobile device is used for the display language.
[Server Configuration] is always set to [HTTPS] when you are using the app under iOS. Also, the port used for HTTPS communication becomes the default port of the server.
