Extended Access Control

Extended Access Control node is only displayed if you set the key 'core.sdp.extended.access.control.list.hide' to true. Refer to Advanced System Settings Editor for details.

1. Login to the Management Console using a user account that has all the SysConfigRead, SysConfigWrite, and @RemoteCE Privileges.

2. Click [System] → [Server Settings] → [Advanced System Settings Editor].

3. Click [View] → [Central Manager Settings].

4. Find and select the "core.sdp.extended.access.control.list.hide" key.

5. Set the Value to [True].

6. Click [Save]

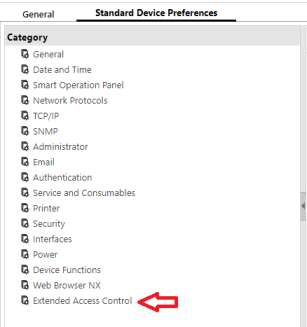

You may need to logout and login again to the management console to see the Extended Access Control section in the Standard Device Preferences Template as shown below.

Here are the settings you can set in Extended Access Control section.

IPV4

Setting Item	Description
Access Control	If enabled, the IPv4 access control ranges are editable. By default, this control item is disabled
Access Control Range 1-50	Specify the beginning IPv4 Address on the first field, then the ending address on the second field.
