Dashboard - Policy Compliance History by Tag

This dashboard helps you to determine device policy compliance based on tag history. When you select Policy compliance history by tag from the View by list, you can select a particular tag and set a specific time period prior to view in graph format. You can also view the data for a specific device, device group, or all devices.

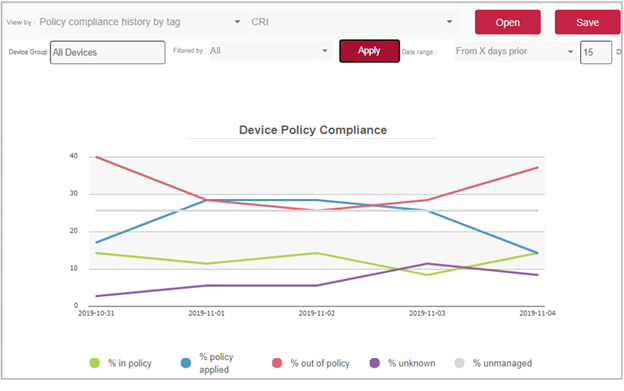

The line graph provides a visual map of device compliance (or a specific device group) over the period of time to help you determine when and how many devices with this tag became non-compliant.

• After you select a Date range option, additional fields may be required. In the example below, From Days X prior requires you to enter the number of days, and the field appears beside the Date Range.

• To further filter the data, you can select an option from the Filtered by list. This will limit the graph to a show a single filter. The colour key is provided at the bottom of the graph.

• After you enter the date (or other required setting for your Date Range selection), click (Apply) to refresh the line graph.

Use this dashboard if you want to monitor devices covered by a particular tag. For example, if you want to monitor devices with an SSL tag, you could filter that tag and then view all devices that did not comply with the SSL tag over a specified amount of time.
