Dashboard - Current Policy Compliance by Tag

This dashboard view allows you to view device data by tag. When you select Current policy compliance by tag from the View by list, a tag list appears where you can select an individual tag. The Device table will refresh after your selection to present only devices covered by the specified tag. In the example below, the specified tag is CAF; however, the device list was then further filter to view all managed devices that are covered by a template that uses that CAF security tag AND whose state is ‘policy applied’.

This dashboard is useful when trying to determine which tag is causing the device to report as “out of policy”. Filter the list based on tag, and then by ‘out of policy’ to see the results. If specific tags have caused an Out of Policy state, the tags are listed in the Failed Security Tags column.

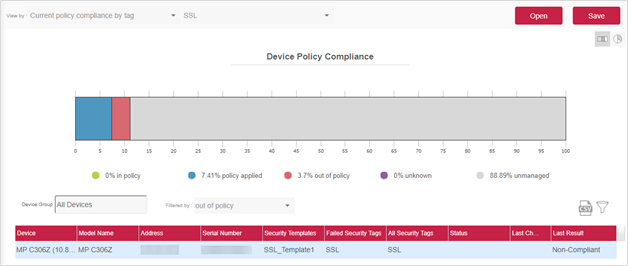

In the example below, only devices that are covered by an SSL-tagged template are displayed AND further filtered to show only devices that are out of policy.

Quick way to know the actual number of devices in every State is to hover on the graph. The hover will show the actual devices count and the percentage.
